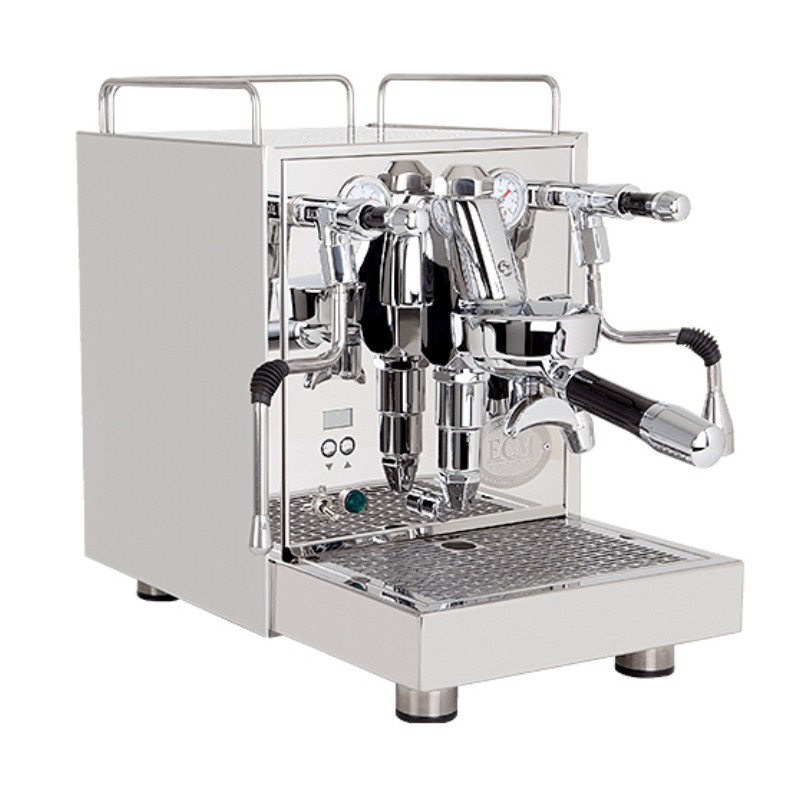

ECM Mechanika Max II Espresso Machine

Voltage
Price: £1,999.00
VAT UK 20% included
Product availability: shipped in 24h
The ECM Mechanika Max II is a prosumer heat-exchanger (HX) espresso machine built around the legendary E61 group — but thanks to PID + BTC control that measures temperature right at the group, it delivers dual-boiler-grade temperature stability. Brew and steam at the same time, with no cooling flushes and no temperature surfing.
Read more

The ECM Mechanika Max II is a prosumer heat-exchanger (HX) espresso machine, hand-built in Germany around the legendary E61 group. On paper it’s a heat exchanger — in the cup it performs like a dual boiler.

Dual-boiler-grade temperature control. ECM’s BTC (Brew Temperature Control) with PID reads the temperature right at the brew group — not just inside the boiler — and a cartridge-heated E61 group holds your set brew temperature (adjustable 90–95 °C) shot after shot. The result is the rock-steady, shot-to-shot consistency you’d expect from a dual boiler, with no cooling flushes and no temperature “surfing” that traditional HX machines need.

Brew and steam at the same time. Like a dual boiler — and unlike a single boiler — the Max II lets you pull a shot and steam milk simultaneously, with selectable steam levels, so there’s zero wait between espresso and microfoam.

What’s new vs the Mechanika Max. The Max II introduces ECM’s advanced one-way HX system that further reduces thermal fluctuations, paired with a fast cartridge-heated group (ready in about 12 minutes) and refined BTC with active and passive pre-infusion — an evolution of the proven Mechanika that sharpens its biggest strength: temperature stability.

Built to last, ready to plumb. A quiet rotary pump runs from the 3 L tank or a direct mains connection (metal hose included), with two pressure gauges (boiler + pump), full stainless-steel housing, ECO mode, programmable on/off scheduling, maintenance and filter reminders, Clean Mode and a removable cup-warming tray — all in a compact 275 × 445 × 405 mm (23.5 kg) footprint.

Advanced single-boiler HX design with Brew Temperature Control; brew and steam priority are selectable.

  • 1×Single-spout portafilter
  • 1×Double-spout portafilter
  • 1×Single-shot filter basket
  • 1×Double-shot filter basket
  • 1×Blind filter
  • 1×Tamper
  • 1×Group head cleaning brush
  • 1×Braided metal hose for mains water connection
  • 1×Drip tray with grid
  • 1×Cup tray
  • 1×Water filter set
  • 1×User manual

5,0 out of 5 · 1 review (since 2026)

★★★★★ Excellent machine

Adam G. · 20 November 2026 · Verified purchase

After a lot of research I decided on the ECM Mechanika Max II. I loved the build quality of ECM and the very quick heat-up time for the Max II. It is used for espresso, americano and latte in equal measure daily by my son and I. We paired it with a Mazzer Philos grinder.
Customer photo

We publish every approved review, positive or negative, without editing it. «Verified purchase» means the author bought the product from us.

Features

Boiler Type
Heat-exchanger
Total Boiler Capacity
1.9 Liters
Total Boiler Capacity
2.0 Liters
Wattage
1400 W
Wattage
1600 W
Wattage
2000 W
Brew Group Type
E61
Pump Type
Rotary
Water Feed
Reservoir/hard Plumbing
Reservoir Capacity
3 Liters

Extra

Steam Wand
Yes (no-burn)
Hot Water Supply
Yes
Variable Pressure Profile
Flow Control Kit Available As Optional
Pid Control
Yes
Shot Timer
No
Shot Timer
Yes

Dimensions

Width
275 Mm
Depth
445 Mm
Height
405 Mm
Net Weight
23.5 Kg
Brew Group Diameter
58 Mm

Materials

Boiler Material
Stainless Steel
Brew Group Material
Chrome Plated Brass
Housing Material
Stainless Steel
Frame Material
Steel
Reference code
53MEKMXII22

Compare similar

ECM Mechanika Max II Espresso Machine Rocket Mozzafiato Timer Evoluzione R Coffee Machine Sanremo Cube R Espresso Machine Lelit Bianca PL162T V3 Black Espresso Machine
Price £1,999.00 £1,615.00 £1,900.00 £2,250.00 £2,500.00 £2,025.00 £2,250.00
Brew Group Diameter 58 Mm 58 Mm 58 Mm 58 Mm
Housing Material Stainless Steel Stainless Steel/aluminium Stainless Steel/aluminium Stainless Steel
Total Boiler Capacity 2.0 Liters, 1.9 Liters 1.80 Liters 1.9 Liters 2.3 (0.8 + 1.5) Liters
Wattage 1600 W, 1400 W, 2000 W 1350 W 1500 W 1400 W, 2800 W
Hot Water Supply Yes Yes Yes Yes
Pump Type Rotary Rotary Rotary Rotary
Boiler Type Heat-exchanger Heat-exchanger Heat-exchanger Double Boiler
Brew Group Type E61 E61 E61 E61
Steam Wand Yes (no-burn) Yes (no-burn) Yes (no-burn) Yes (no-burn)
Variable Pressure Profile Flow Control Kit Available As Optional No No Yes Manual
Width 275 Mm 280 Mm 320 Mm 290 Mm
Depth 445 Mm 425 Mm 465 Mm 290 Mm, 405 Mm, 585 Mm + 80 Mm Movable Tank
Height 405 Mm 400 Mm 370 Mm 390 Mm, 400 Mm
Net Weight 23.5 Kg 30.2 Kg 26.5 Kg 26.5 Kg
Boiler Material Stainless Steel Copper/brass Stainless Steel Stainless Steel
Brew Group Material Chrome Plated Brass Chrome Plated Brass Chrome Plated Brass Chrome Plated Brass
Frame Material Steel Steel Steel Steel
Pid Control Yes Yes Yes Yes
Shot Timer No, Yes Yes No Yes
Water Feed Reservoir/hard Plumbing Reservoir/hard Plumbing Reservoir/hard Plumbing Reservoir/hard Plumbing
Reservoir Capacity 3 Liters 2.5 Liters 1.8 Liters 2.5 Liters
Category Espresso Machine Espresso Machine Espresso Machine Espresso Machine
